Product Advantages

01. More Authentic and Accurate Spectral Data

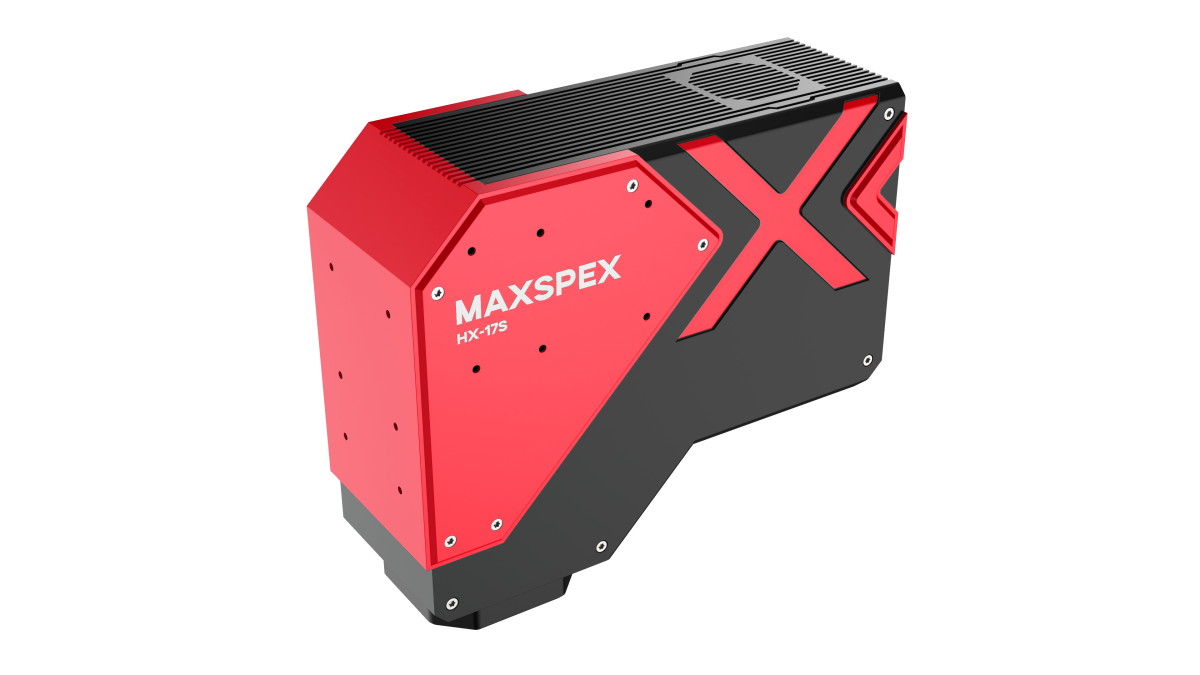

For all industrial online application scenarios, dispersive push-broom imaging technology is the most suitable method for obtaining stable data at high speeds. The HX series industrial hyperspectral camera from HHIT not only delivers high-speed imaging but also acquires spectral information across all bands of the target area in a single scan, ensuring the authenticity and accuracy of the spectrum for every spatial pixel.

02. Higher Speed and Greater Flexibility
Equipped with powerful Region of Interest (ROI) band selection functionality, the HX series hyperspectral camera meets the demands of diverse applications while achieving higher data acquisition speeds. The maximum frame rate exceeds 1400 fps across the full spectral range, and can reach up to 8800 fps after ROI configuration.

03. Wider Field of View
Through a uniquely designed precision optical system, the HX series achieves a larger field of view compared to other hyperspectral cameras. When paired with an 8mm focal length lens, the maximum field of view exceeds 75°, better meeting industrial customers' requirements for inspection efficiency.

04. Superior Cost-Effectiveness
While matching or even exceeding the performance of comparable international equipment, the HX series hyperspectral camera achieves exceptional cost-effectiveness through fully domestic technology and supply chain systems, helping customers obtain higher returns on investment.

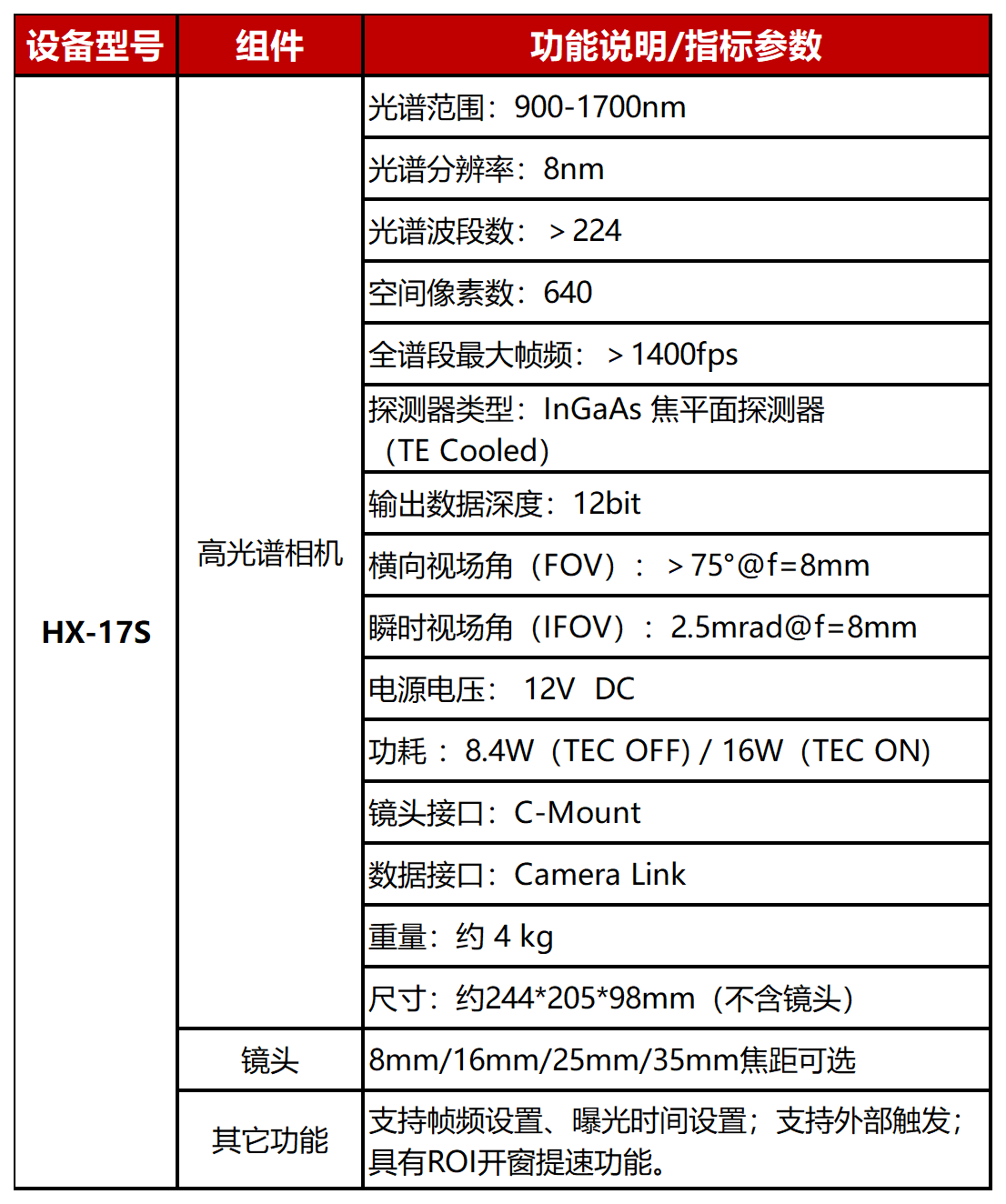

产品规格
