Application Fields
Biomedicine
Forensic evidence detection
Artwork authentication

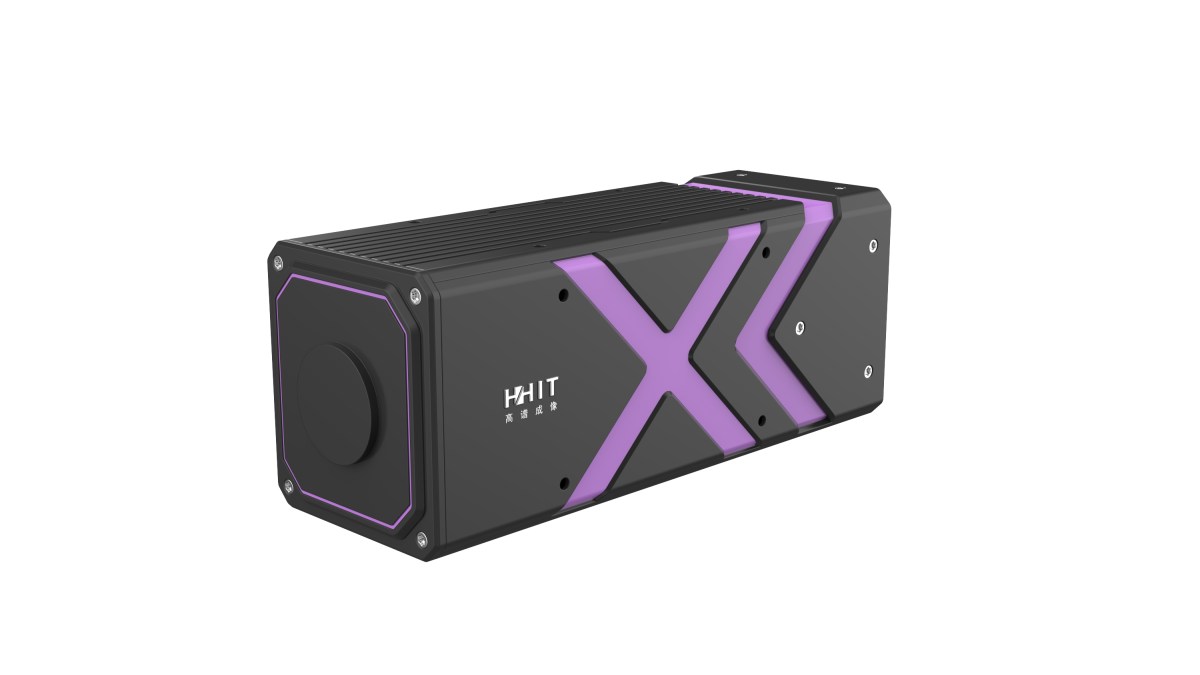

Functional Features
Wavelength range covers 250-490nm.
Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.
Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.
Features small size, light weight, excellent spectral performance, and high cost-effectiveness.
Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.
Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.
Specifications
TECHNICAL SPECIFICATIONS | |
Spectral range | 250-490nm |
Spectral resolution | ≤ 2nm |
F-number | F/2.8 |
Sensor | CMOS |
Data interface | GigE |
Power supply | 12V DC, 13.6w |
Bit depth | 12 Bit |
Slit width | 20μm |
Spatial pixels | > 560（2x） |
Spectral bands | > 250（2x） |
Field of View (FOV) | 18.8°@25mm |
Instantaneous Field of View (IFOV) | 0.8mrad@25mm |
Frame Rate | 28fps |
Dimensions | Approx.335mm x 88mm x 83mm |
Weight | < 2Kg |
Operating temperature | I0-40℃ |
Storage temperature | I0-50℃ |
