Application Fields
Education and scientific research
Smart agriculture
Ecological environmental protection
Intelligent manufacturing
Industrial inspection
Functional Features
Wavelength range covers 400-1000nm.
Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.
Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.
Features small size, light weight, excellent spectral performance, and high cost-effectiveness.
Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.
Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.
Specifications

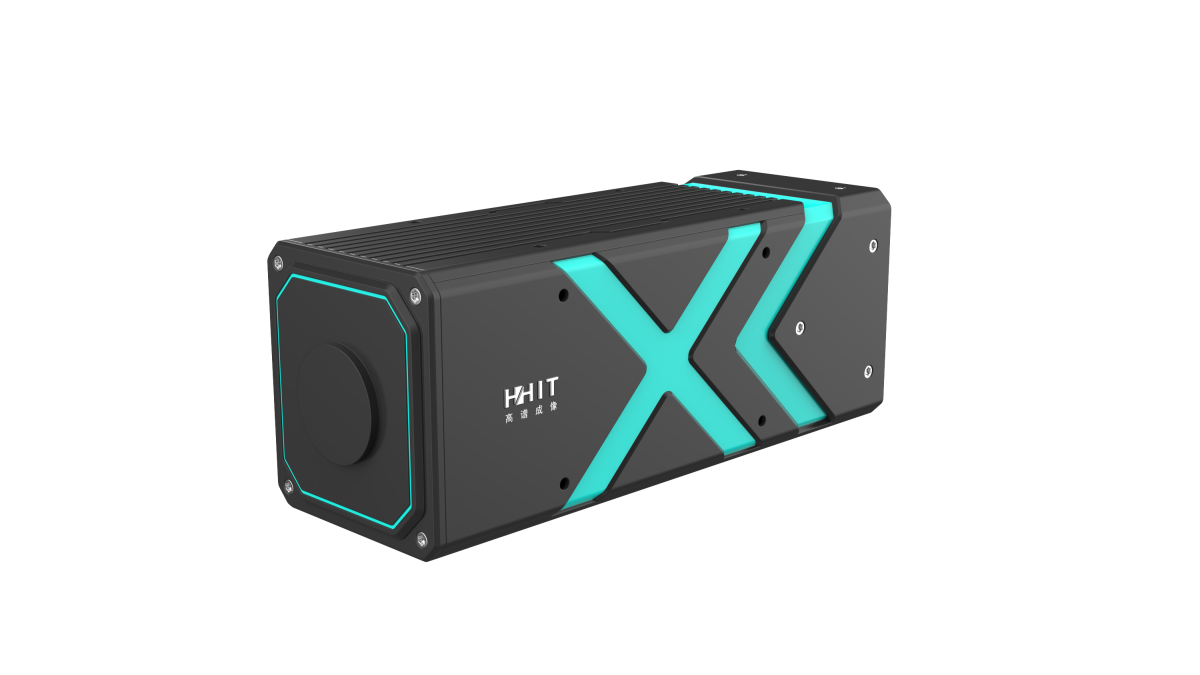

TECHNICAL SPECIFICATIONS | HY-1230-01 |
Spectral Dispersion Method | Transmission Grating Spectroscopy |
Spectral range | 400-1000nm |
Spectral resolution | ≤ 2.8nm |
Sampling Interval | 2.2nm |
F-number | F/2.6 |
Sensor | CMOS |
Data interface | GigE / USB3.0 |
Power supply | External (12-24 VDC),3W |
Sensor Optical Format | 1/1.2” , 11.3mm x 7.1mm |
Sensor resolution | 1920 x 1200 |
Pixelsize | 5.86 µm x 5.86 µm |
Bit depth | 12bits |
Effective slit length | 11.3mm |
Slit width | 25µm |
Recommended binning | 4x4 |
Spatial pixels | 480 |
Spectral bands | 300 |
Field of View (FOV) | 15.6°@f=35mm |
Instantaneous Field of View (IFOV) | 0.71mrad@f=35mm |
Frame rate | 50fps/128fps |
Dimensions | Approx240mm x80mm x 70mm |
Weight | <1.5Kg |
Operating temperature | ‘0-40℃ |
Storage temperature | ‘0-50℃ |
