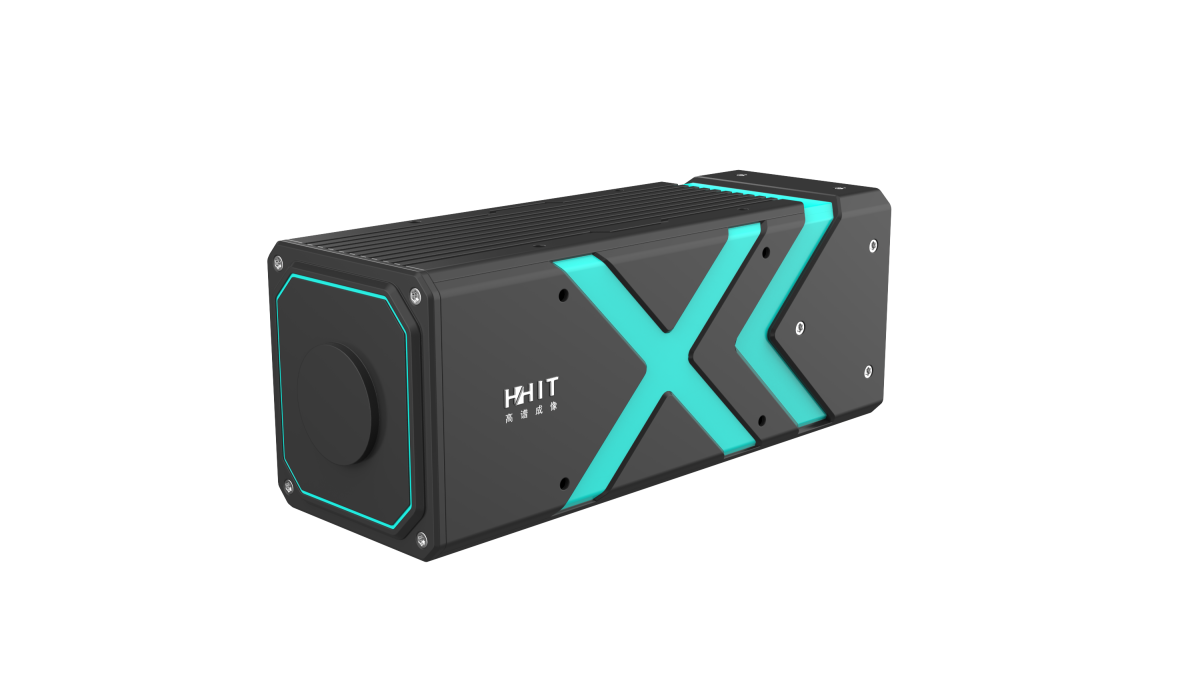

HY-1260-01 VNIR(400-1000nm) Hyperspectral Camera
The HY-1260-01 visible-near infrared hyperspectral camera provides multiple spectral bands, along with optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 400-1000nm. Based on varying research and application scenarios, the HY-1260-01 can be flexibly integrated into UAV-borne hyperspectral imaging systems, laboratory equipment, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also offers convenient secondary development support, meeting customers' in-depth perception requirements in fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

Application Fields

Education and scientific research

Smart agriculture

Ecological environmental protection

Intelligent manufacturing

Industrial inspection

Functional Features

Wavelength range covers 400-1000nm.

Utilizes prism-grating spectroscopy to obtain more precise and higher-resolution spectral data.

Self-developed modules are compatible with various detectors, providing choices for multiple spectral bands, sizes, and detector types.

Boasts small size, light weight, superior spectral performance, and high cost-effectiveness.

Employs full-target surface optical design for high imaging quality, with a spot diameter less than 0.5 pixels.

Comes with a standard C-Mount lens interface, enabling focal length replacement as per user requirements.

Specifications

TECHNICAL SPECIFICATIONS

HY-1260-01

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

400-1000nm

Spectral resolution

≤ 2.3nm

Sampling Interval

2.8nm

F-number

F/2.4

Sensor

CMOS

Data interface

GigE

Power supply

External,12V DC,4.2W

Optical Format

1.1” , 14.5mm x 9.9mm

Sensor resolution

1600 x 1100

Pixelsize

9 µm x 9 µm

Bit depth

12bits

Effective slit length

14.2mm

Slit width

30µm

Recommended binning

4x4

Spatial pixels

390

Spectral bands

228

Field of View (FOV)

22.9°@f=35mm

Instantaneous Field of View (IFOV)

0.85mrad@f=35mm

Frame rate

68fps

Dimensions

Approx.280mm x 80mm x 70mm

Weight

<1.5Kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃
