Application Fields
Education and scientific research
Smart agriculture
Ecological environmental protection
Intelligent manufacturing
Industrial inspection
Functional Features
Wavelength range covers 400-1000nm.
Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.
Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.
Features small size, light weight, excellent spectral performance, and high cost-effectiveness.
Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.
Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.
Specifications

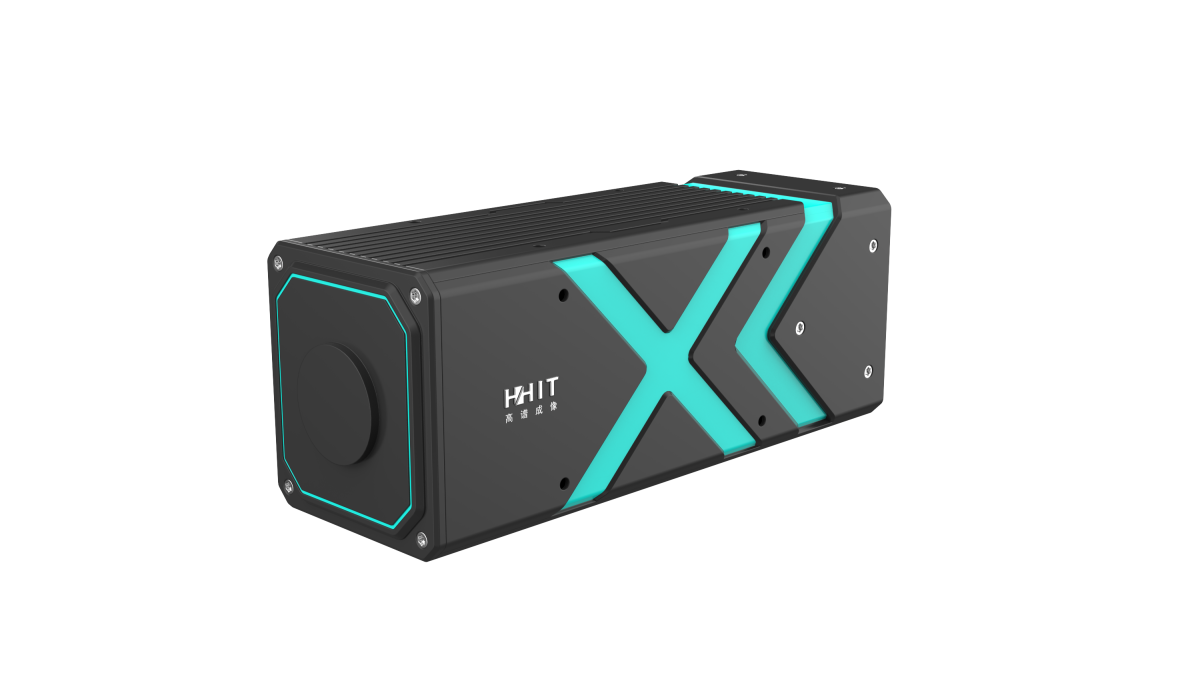

TECHNICAL SPECIFICATIONS | HY-1260-03 |
Spectral Dispersion Method | Transmission Grating Spectroscopy |
Spectral range | 400-1000nm |
Spectral resolution | ≤ 2.3nm |
Sampling Interval | 2.4nm |
F-number | F/2.4 |
Sensor | SCMOS(TE Cooled) |
Data interface | USB3.0 |
Power supply | External,12V DC,4.3W |
Optical Format | 1.2” , 13.3mm x 13.3mm |
Sensor resolution | 2048*2048 |
Pixel size | 6.5 µm x 6.5 µm |
Bit depth | 12bits |
Effective slit length | 13.3mm |
Slit width | 30µm |
Recommended binning | 4x4 |
Spatial pixels | 512 |
Spectral bands | ≥300 |
Field of View (FOV) | 21°@f=35mm |
Instantaneous Field of View (IFOV) | 0.74mrad@f=35mm |
Frame rate | 72fps |
Dimensions | Approx.350mm x 90mm x 90mm |
Weight | <2Kg |
Operating temperature | ‘0-40℃ |
Storage temperature | ‘0-50℃ |
