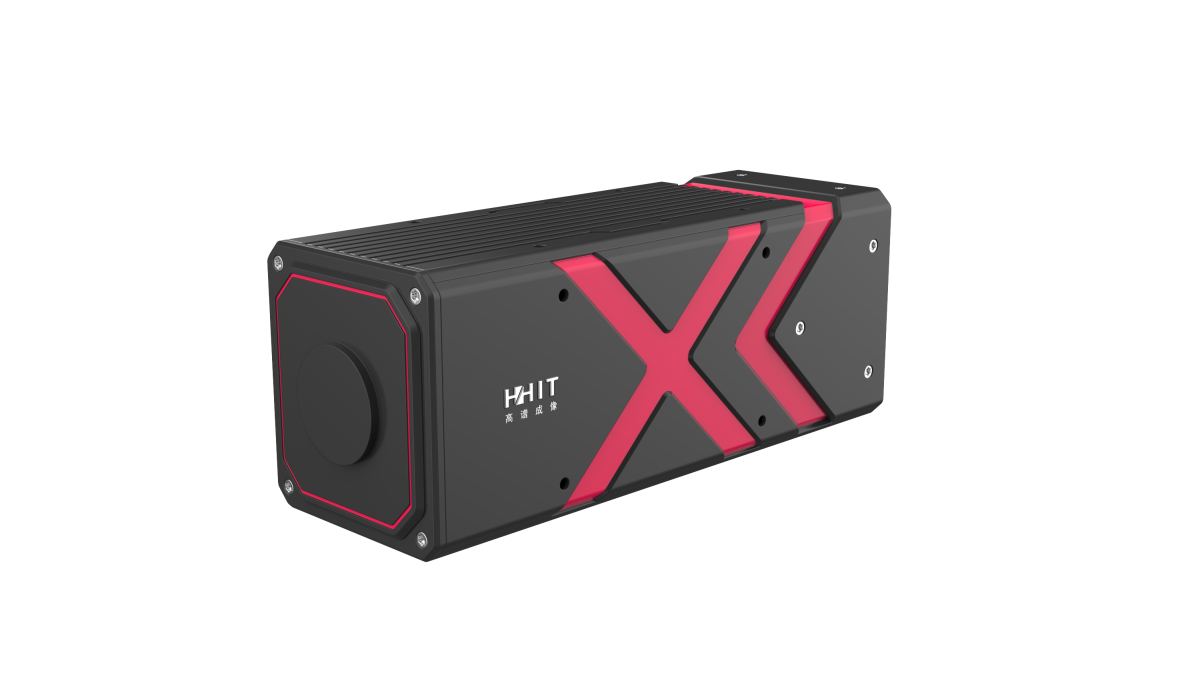

HY-1310-05 NIR(900-1700nm) Hyperspectral Camera
The HY-1310-05 visible-near infrared hyperspectral camera offers multiple spectral bands, as well as optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 900-1700nm. Depending on different research and application scenarios, the HY-1310-05 can be freely integrated into laboratory setups, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also provides user-friendly secondary development support, addressing customers' in-depth perception needs in application fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

Application Fields

Education and scientific research

Smart agriculture

Ecological environmental protection

Intelligent manufacturing

Industrial inspection

Functional Features

Wavelength range covers 900-1700nm.

Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.

Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.

Features small size, light weight, excellent spectral performance, and high cost-effectiveness.

Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.

Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.

Specifications

TECHNICAL SPECIFICATIONS

HY-1310-05

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

900-1700nm

Spectral resolution

≤ 6nm

Sampling Interval

1.7nm

F-number

F/2.0

Sensor

InGaAs(TE Cooled)

Data interface

GigE

Power supply

12V DC ,8.4W(TEC OFF) / 16W(TEC ON)

Sensor Optical Format

9.6mm x 7.68mm

Sensor resolution

640*512

Pixelsize

15µm x15 µm

Bit depth

14bit

Effective slit length

9.6mm

Slit width

30μm

Recommended binning

1x1

Spatial pixels

640

Spectral bands

512

Field of View (FOV)

15.6°@f=35mm

Instantaneous Field of View (IFOV)

0.43mrad@f=35mm

Frame rate

175fps

Dimensions

300mm*105mm*90mm (excluding lens)

Weight

<3kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃
