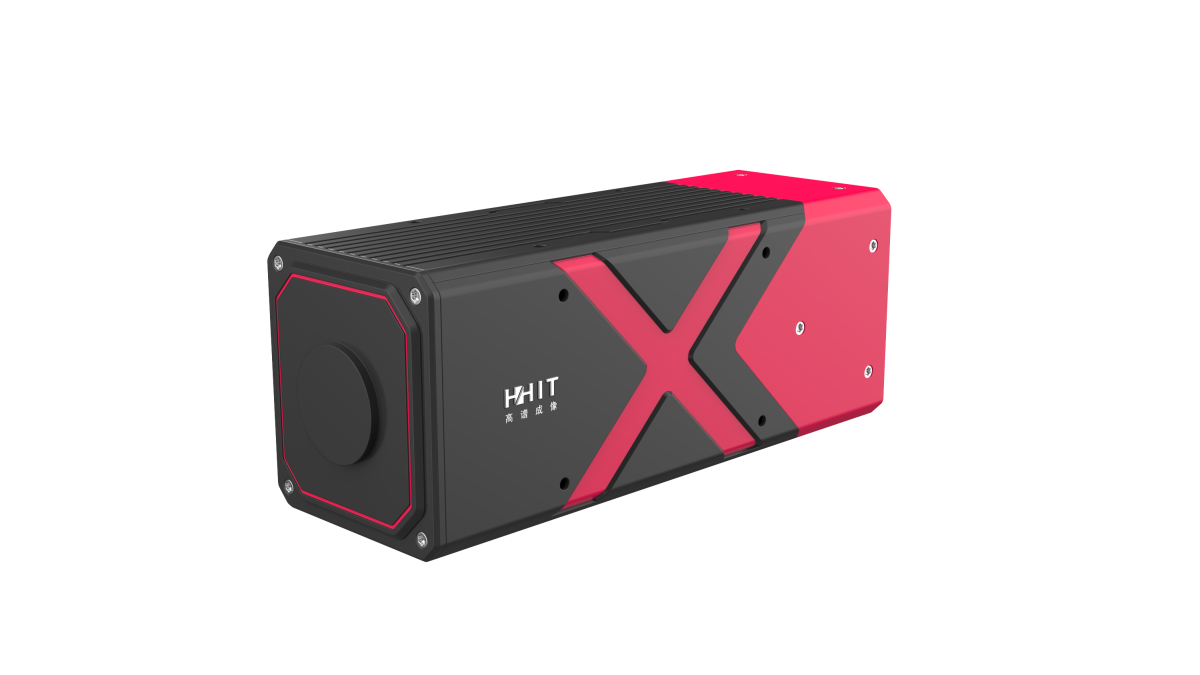

HY-1510-03 SWIR(900-2500nm) Hyperspectral Camera
The HY-1510-03 visible-near infrared hyperspectral camera provides multiple spectral bands, along with optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 900-2500nm. Based on varying research and application scenarios, the HY-1510-03 can be flexibly integrated into UAV-borne hyperspectral imaging systems, laboratory equipment, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also offers convenient secondary development support, meeting customers' in-depth perception requirements in fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

Application Fields

Education and scientific research

Smart agriculture

Ecological environmental protection

Intelligent manufacturing

Industrial inspection

Functional Features

Wavelength range covers 900-2500nm.

Utilizes prism-grating spectroscopy to obtain more precise and higher-resolution spectral data.

Self-developed modules are compatible with various detectors, providing choices for multiple spectral bands, sizes, and detector types.

Boasts small size, light weight, superior spectral performance, and high cost-effectiveness.

Employs full-target surface optical design for high imaging quality, with a spot diameter less than 0.5 pixels.

Comes with a standard C-Mount lens interface, enabling focal length replacement as per user requirements.

Specifications

TECHNICAL SPECIFICATIONS

HY-1510-03

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

900-2500nm

Spectral resolution

≤ 10nm

Sampling Interval

3nm

F-number

F/2.0

Sensor

HgCdTe (Stirling)

Data Interface

GigE

Power supply

24V DC

Sensor Optical Format

9.6mm x 7.68mm

Sensor resolution

640 x 512

Pixelsize

15 µm x 15 µm

Bit depth

14bits

Effective slit length

9.6mm

Slit width

30µm

Recommended binning

1x1

Spatial pixels

640

Spectral bands

≥400

Field of View (FOV)

21.8°@f=25mm

Instantaneous Field of View (IFOV)

1.2mrad@f=25mm

Frame rate

≥100fps

Dimensions

约500mm*150mm*150mm (excluding lens)

Weight

< 8kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃
