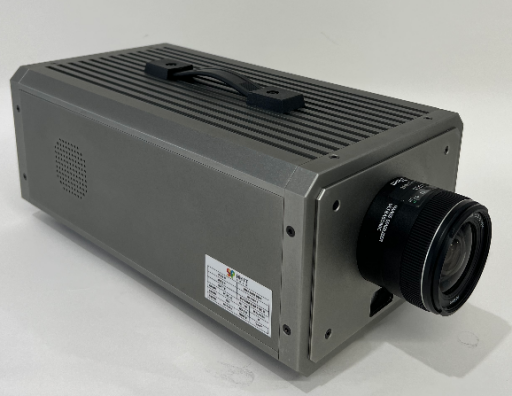

HY-6010-U VNIR(400-1000nm) Portable Hyperspectral Imager
The HY-6010-U Portable Hyperspectral Imager is a spectral imaging system suitable for field operations. Its main unit incorporates a built-in power module, eliminating the need for complicated external wiring. When used with a professional field tripod, it enables quick setup and fast completion of data collection tasks. The HY-6010-U Portable Hyperspectral Imager delivers fast and convenient solutions for agricultural and forestry research, ecological environment monitoring, urban applications, industrial applications, archaeological relics studies, geological exploration, and military applications.

Application Fields

Agriculture & Forestry: Pest and disease monitoring, drought assessment, plant identification, grassland growth status monitoring

Ecological Environment: Water body monitoring, atmospheric environment monitoring, soil nutrient determination

Urban Applications: Urban planning, road damage inspection, environmental law enforcement, landscape plant monitoring

Archaeology & Cultural Relics: Heritage site identification, material authentication, pigment differentiation

Geological Exploration: Oil exploration, mineral exploration, mineral mapping

Military Applications: Target verification, anti-camouflage identification

Functional Features

Large-target CMOS hyperspectral camera, supporting up to 1920 spatial channels and 1200 spectral channels

High-precision built-in scanning module with automatic speed matching, ensuring clear imaging without external movement

Built-in TOF camera for synchronous measurement of target 3D information

Integrated high-performance computing unit and high-definition touchscreen, enabling operation without an external computer for enhanced convenience

Real-time monitoring of hyperspectral images and spectral curves

Data format compatible with third-party software such as ENVI and Evince

Dedicated portable tripod for quick setup and easy portability

Specifications


TECHNICAL SPECIFICATIONS

HY-6010-U

System Function

Imaging Mode

Built-in Push-Broom Imaging

Hyperspectral Camera

Spectral range

400-1000nm

Spectral resolution

≤ 2.8nm

Sampling Interval

0.5nm

F-number

F/2.6

Sensor

CMOS

Data interface

GigE / USB3.0

Power supply

External Power Supply (12-24 VDC),3W

Sensor Optical Format

1/1.2” , 11.3mm x 7.1mm

Sensor resolution

1920 x 1200

Pixelsize

5.86 µm x 5.86 µm

Bit depth

12bits

Slit width

25µm

Recommended binning

4x4

Spatial pixels

480

Spectral bands

300

Field of View (FOV)

15.6°@f=35mm

Instantaneous Field of View (IFOV

0.71mrad@f=35mm

Frame rate

50fps/128fps

Lens

Focus Mode

Manual Focus

Focal Length

35mm

FOV

Vertical FOV

15.6°f=35mm(±20° Adjustable

Scanning Range

Horizontal Scanning Range

360°

Vertical Scanning Range

±20°

Power Supply


12V DC
