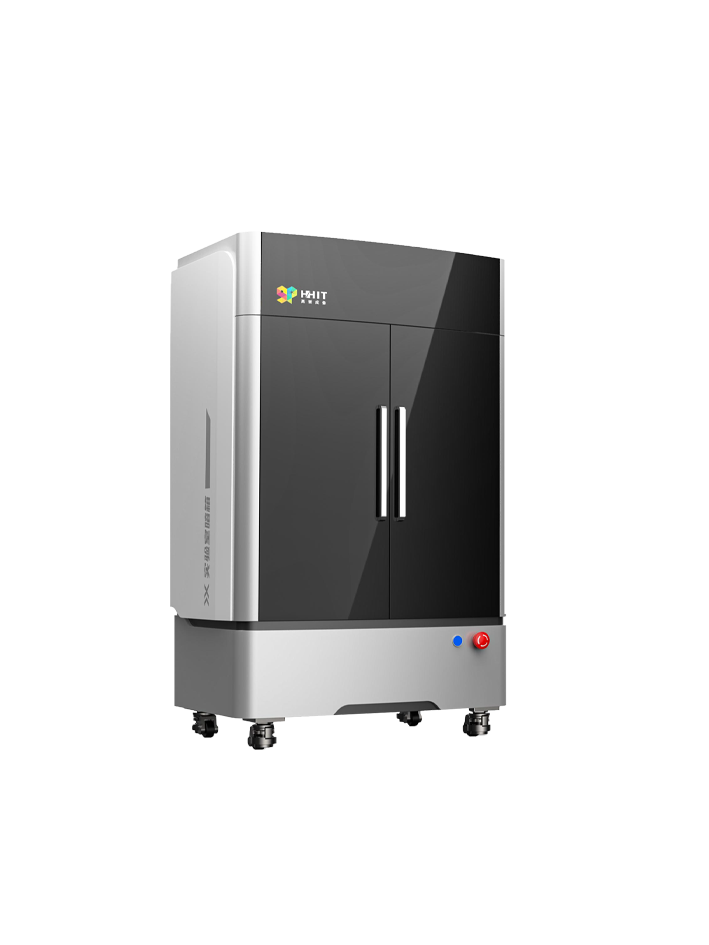

HY-8030-S NIR(900-1700nm) Laboratory Hyperspectral Imager
The HY-8030-S Laboratory Hyperspectral Imager is a specialized device customized for laboratory environments. It can accurately detect the qualitative, quantitative, temporal, and positional information of substances, acting as a professional scientific research instrument that integrates "spectral and spatial data". The core spectroscopic module of the HY-8030-S Laboratory Hyperspectral Imager is fully independently developed by Gaopu Company. It supports the selection of multiple models of image sensors and is paired with a high-megapixel high-definition camera to achieve perfect integration of high spatial resolution and high spectral resolution. Moreover, the HY-8030-S offers optional self-developed linear light sources and custom dark boxes, which minimize the impact of the external environment on sample detection. Combined with its unique spatiotemporal radiometric correction function, it ensures the acquisition of stable and standardized hyperspectral data. The HY-8030-S Laboratory Hyperspectral Imager provides high-precision spectral modeling and analysis solutions for high-end application fields including material sorting, forensic document examination, food monitoring, and authenticity identification.

Application Fields

Forensic Document Examination: Evidence, seals, signatures, alterations, inks, printed products, certificates, fingerprints, etc.

Food Applications: Fruits and vegetables, meat, grains, tea.

Material Sorting: Tobacco, pharmaceuticals.

Authenticity Identification: Cultural relic authentication, jewelry identification.

Functional Features

Multiple models of 900-1700nm near infrared hyperspectral cameras are available for selection.

Spatiotemporal radiometric intensity correction, which significantly improves radiometric calibration accuracy (time correction + spatial correction).

Integrated high-definition camera enhances spatial resolution, facilitating data retrieval in massive datasets.

Automatic scanning to complete data acquisition and storage.

Uniform light source/linear light source, matching the field of view of the hyperspectral camera to provide full-spectrum illumination for data acquisition.

Optional dedicated dark box ensures the acquisition of stable and standardized hyperspectral data.

Assisted focusing: automatically adjusts the lifting and focusing of the hyperspectral camera according to the sample thickness to ensure clear imaging.

Automatic integration time recommendation: suggests exposure time based on sample reflectance.

Hyperspectral data supports third-party software such as ENVI.

Specifications


TECHNICAL SPECIFICATIONS

HY-8030-S

Hyperspectral Camera

Spectral range

900-1700nm

Spectral resolution

≤ 4nm

Spectral channels

512

Spatial channels

640

Sensor

Type

InGaAs(TE Cooled)

Data interface

CameraLink

Frame rate

300fps

Lens

Focal Length

8mm/12mm/25mm/35mm/50mm

HD Camera

Pixel

24M

Light Source


Line Light Source

Others

Enclosure

Dark Chamber

Scanning Range

200*300mm

Sample Thickness

0-100mm
