Product

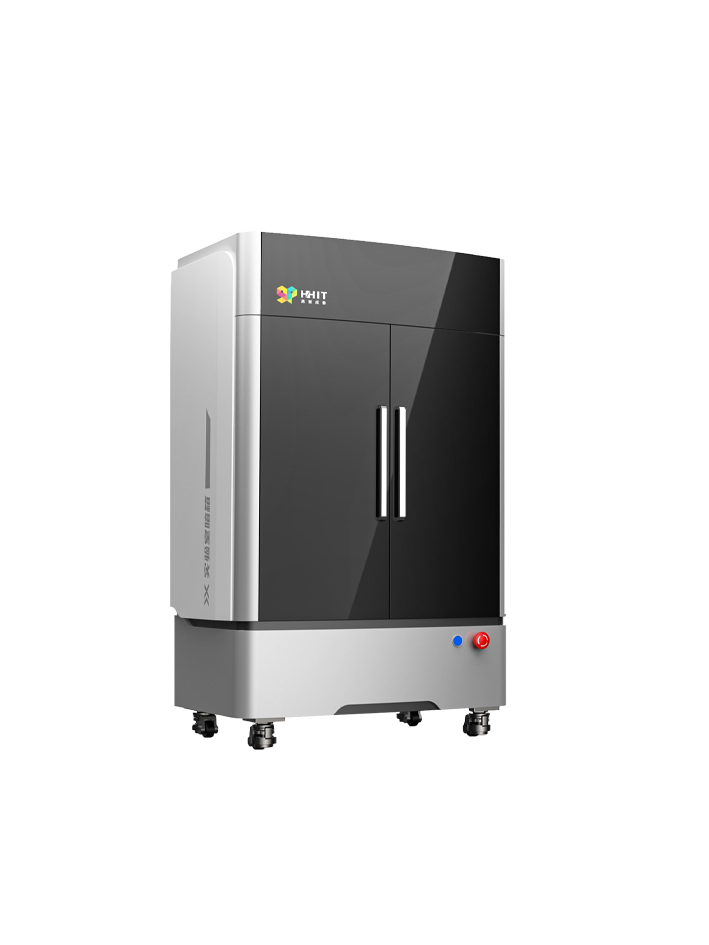

HY-8030-U NIR(900-1700nm) Laboratory Hyperspectral Imager
The HY-8030-U Laboratory Hyperspectral Imager is a specialized device tailor-made for laboratory settings. It enables precise detection of the qualitative, quantitative, temporal, and positional attributes of substances, serving as a professional scientific research tool with "spectral-spatial integration". The core spectroscopic module of the HY-8030-U Laboratory Hyperspectral Imager is fully independently developed by Gaopu Company. It supports the selection of various types of image sensors and is combined with a high-megapixel high-definition camera to achieve seamless integration of high spatial resolution and high spectral resolution. Furthermore, the HY-8030-U offers optional self-developed linear light sources and custom dark boxes, which minimize the influence of the external environment on sample detection. Together with its exclusive spatiotemporal radiometric correction function, it guarantees the acquisition of stable and standardized hyperspectral data. The HY-8030-U Laboratory Hyperspectral Imager delivers high-precision spectral modeling and analysis solutions for high-end application sectors such as material sorting, forensic document examination, food monitoring, and authenticity verification.

Application Fields

Forensic Document Examination: Evidence, seals, signatures, alterations, inks, printed items, certificates, fingerprints, etc.

Food Applications: Fruits & vegetables, meat, grains, tea.

Material Sorting: Tobacco, pharmaceuticals.

Authenticity Identification: Cultural relic authentication, jewelry identification.

Functional Features

A variety of 900-1700nm near infrared hyperspectral camera models are optional.

Spatiotemporal radiometric intensity correction, significantly enhancing radiometric calibration accuracy (time correction + spatial correction).

Integrated high-definition camera improves spatial resolution, making it easy to locate specific data in large datasets.

Automatic scanning to complete data acquisition and storage.

Uniform light source/linear light source, which matches the field of view of the hyperspectral camera and provides full-spectrum illumination for data collection.

Optional dedicated dark box to ensure the acquisition of stable and standardized hyperspectral data.

Assisted focusing: automatically adjusts the lifting and focusing of the hyperspectral camera based on the sample thickness to ensure clear imaging.

Automatic integration time recommendation: proposes exposure time according to the sample reflectance.

Hyperspectral data is compatible with third-party software such as ENVI.

Specifications


TECHNICAL SPECIFICATIONS

HY-8030-U

Hyperspectral Camera

Spectral range

900-1700nm

Spectral resolution

≤ 4nm

Spectral channels

256

Spatial channels

320

Sensor

Type

InGaAs(TE Cooled)

Data interface

GigE

Frame rate

300fps

Lens

Focal Length

8mm/12mm/25mm/35mm/50mm

HD Camera

Pixel

5M

Light Source


Line Light Source

Others

Enclosure

Dark Chamber

Scanning Range

200*300mm

Sample Thickness

0-100mm
