Product

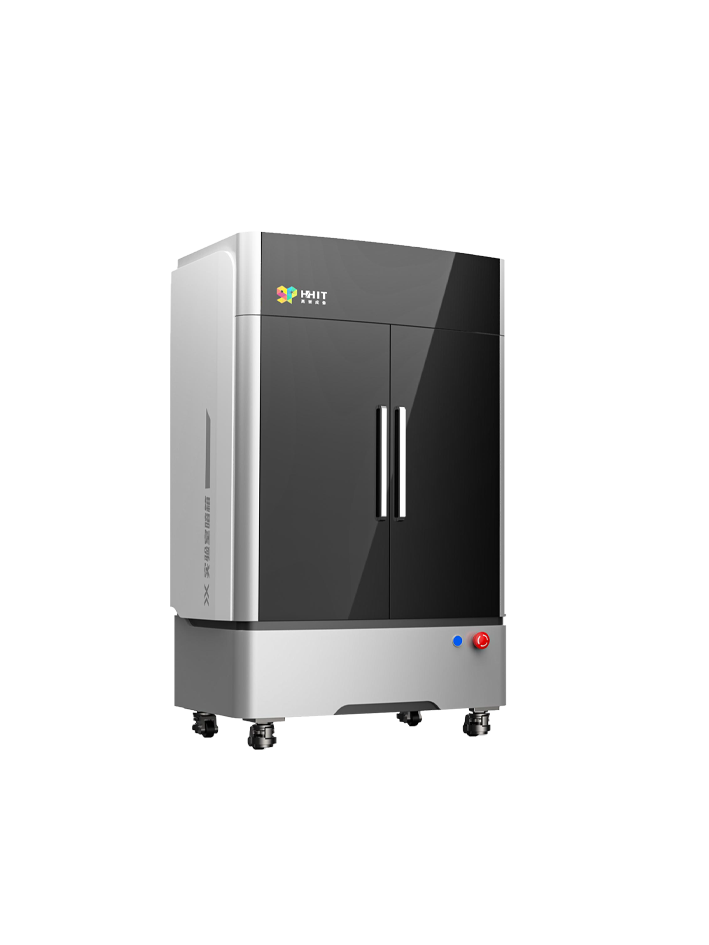

HY-8050-U SWIR(1000-2500nm) Laboratory Hyperspectral Imager
The HY-8050-U Laboratory Hyperspectral Imager is a specialized device custom-designed for laboratory environments. It enables accurate detection of qualitative, quantitative, temporal, and positional information of substances, functioning as a professional scientific research instrument integrating "spectral and spatial data". The core spectroscopic module of the HY-8050-U Laboratory Hyperspectral Imager is fully independently developed by Gaopu Company. It supports the selection of multiple models of image sensors and is paired with a high-megapixel high-definition camera to achieve perfect integration of high spatial resolution and high spectral resolution. Meanwhile, the HY-8050-U offers optional self-developed linear light sources and custom dark boxes, minimizing the impact of the external environment on sample detection. Combined with its unique spatiotemporal radiometric correction function, it ensures the acquisition of stable and standardized hyperspectral data. The HY-8050-U Laboratory Hyperspectral Imager provides high-precision spectral modeling and analysis solutions for high-end application fields such as material sorting, forensic document examination, food monitoring, and authenticity identification.

Application Fields

Forensic Document Examination: Evidence, seals, signatures, alterations, inks, printed products, certificates, fingerprints, etc.

Food Applications: Fruits and vegetables, meat, grains, tea.

Material Sorting: Tobacco, pharmaceuticals.

Authenticity Identification: Cultural relic authentication, jewelry identification.

Functional Features

Multiple models of 1000-2500nm short-wave infrared hyperspectral cameras are available for selection.

Spatiotemporal radiometric intensity correction, significantly improving radiometric calibration accuracy (time correction + spatial correction).

Integrated high-definition camera enhances spatial resolution, facilitating data retrieval amid massive datasets.

Automatic scanning for data acquisition and storage.

Uniform light source/linear light source, matching the field of view of the hyperspectral camera to provide full-spectrum illumination for data acquisition.

Optional dedicated dark box ensures the acquisition of stable and standardized hyperspectral data.

Assisted focusing: automatically adjusts the lifting and focusing of the hyperspectral camera according to the sample thickness to ensure clear imaging.

Automatic integration time recommendation: suggests exposure time based on sample reflectance.

Hyperspectral data supports third-party software such as ENVI.

Specifications


TECHNICAL SPECIFICATIONS

HY-8050-U

Hyperspectral Camera

Spectral range

1000-2500nm


Spectral resolution

≤ 8nm


Spectral channels

256


Spatial channels

320

Sensor

Type

HgCdTe


Data interface

CameraLink


Frame rate

340fps

Lens

Focal Length

25mm

HD Camera

Pixel

4000w

Light Source


Line Light Source

Others

Enclosure

Dark Chamber


Scanning Range

200*300mm


Sample Thickness

0-100mm
