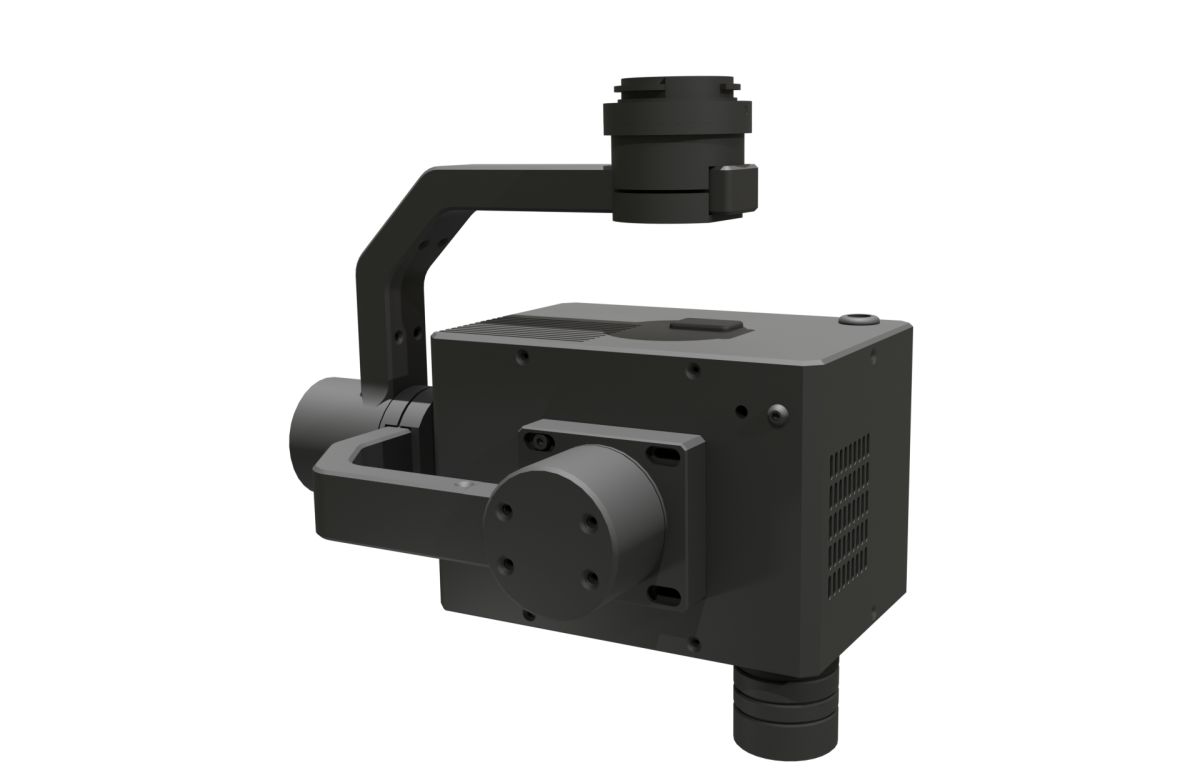

Hyperspectral Camera

Spectral range

400-1000nm

Spectral resolution

≤ 3.5nm

Sampling Interval

2.8nm(4X)

F-number

F/2.4

Sensor

CMOS

Data interface

USB3.0

Power supply

External (12-24 VDC)，3W

Sensor Optical Format

1/1.2” , 11.3mm x 7.1mm

Sensor resolution

1920 x 1200

Pixelsize

5.86 µm x 5.86 µm

Bit depth

12bits

Slit width

25µm

Recommended binning

4x4

Spatial pixels

≥1450(1X),≥360(4X)

Spectral bands

≥920(1X),≥230(4X)

Field of View (FOV)

29°@f=16mm

Instantaneous Field of View (IFOV)

1.6mrad@f=16mm

Max. Frame rate

≤120fps

Frame rate

标配16mm

HD Camera

500W

Self-stabilizing Gimbal

2-axis high-stability gimbal

POS system

GPS positioning accuracy

250px

Acquisition control system

Aerial control and acquisition system

CPU: I7, Memory: 16GB, Hard Drive: 1TB

Remote intelligent control

Drone remote controller intelligent control

Real-time monitoring

Real-time display of spectral and image data

Others

Operating current

Peak current: 3A

Input voltage

13.6V

Weight

＜990g（main unit, lens, and gimbal included）

Operating temperature

0-40℃，20% ~ 80%RH(non-condensing)
