HY-9010-L VNIR(400-1000nm) Hyperspectral Payload

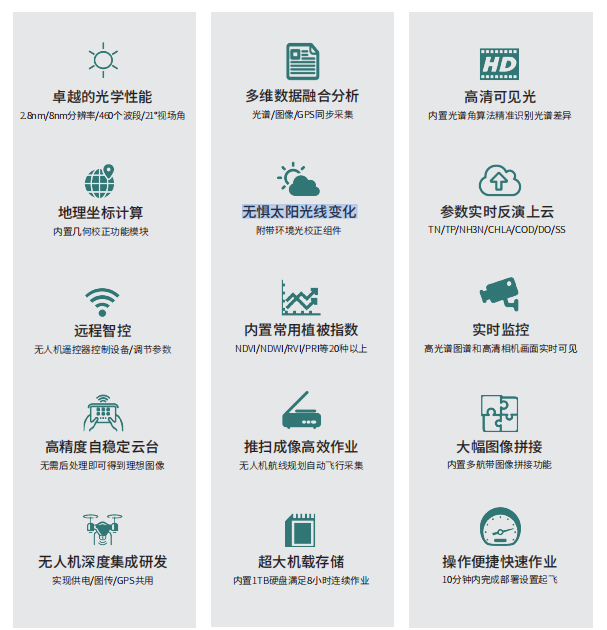

The HY-9010-L UAV-borne hyperspectral imaging system adopts cutting-edge hyperspectral imaging technology. It fully explores and leverages the unique spectral information inherent in different substances, and combines with a high-definition camera to capture high-resolution images. This enables comprehensive detection of the qualitative, quantitative, temporal, and positional information of substances. As an integrated remote sensing device featuring "spectral-spatial integration", it is widely applicable to scenarios such as water environment monitoring, smart agriculture, forestry survey, target recognition, and anti-camouflage, catering to the diverse needs of various industries.

Application Fields

Water environment monitoring

Smart agriculture

Forestry survey

Target recognition

Anti-camouflage

Specifications

TECHNICAL SPECIFICATIONS	HY-9010-L
Hyperspectral Camera	Spectral range	400-1000nm
	Spectral resolution	≤ 3.5nm
	Sampling Interval	2.8nm(4X)
	F-number	F/2.4
	Sensor	CMOS
	Data interface	USB3.0
	Power supply	External, (12-24 VDC)，3W
	Sensor Optical Format	1/1.2” , 11.3mm x 7.1mm
	Sensor resolution	1920 x 1200
	Pixelsize	5.86 µm x 5.86 µm
	Bit depth	12bits
	Slit width	25µm
	Recommended binning	4x4
	Spatial pixels	≥1450(1X),≥360(4X)
	Spectral bands	≥920(1X),≥230(4X)
	Field of View (FOV）	29°@f=16mm
	Instantaneous Field of View (IFOV)	1.6mrad@f=16mm
	Frame rate	≤120fps
	Lens	16mm
HD Camera		500W
Self-stabilizing Gimbal		2-axis high-stability gimbal
POS system	GPS positioning accuracy	250px
Acquisition control system	Aerial control and acquisition system	CPU: I7, Memory: 16GB, Hard Drive: 1TB
	Remote intelligent control	Drone remote controller intelligent control
	Real-time monitoring	Real-time display of spectral and image data
	Operating current	Peak current: 3A
	Input voltage	13.6V
	Weight	＜990g（main unit, lens, and gimbal included）
	Operating temperature	0-40℃，20% ~ 80%RH(non-condensing)
