Hyperspectral Camera

Spectral range

900-1700nm

Spectral resolution

≤ 6nm

Sampling Interval

1.7nm

F-number

F/2.0

Sensor

InGaAs(TE Cooled)

Data interface

USB 3.0

Power supply

12V DC ，<2.1W（TEC OFF）/ <25W（TEC ON）

Sensor Optical Format

6.4mm x 5.12mm

Sensor resolution

1280*1024

Pixelsize

5µm x5 µm

Bit depth

12bit

Slit width

20μm

Recommended binning

2x2

Spatial pixels

640

Spectral bands

400

Field of View (FOV）

14.6°@f=25mm

Instantaneous Field of View (IFOV

0.8mrad@f=25mm

Frame rate

125fps

Lens

16mm

HD Camera

1500W

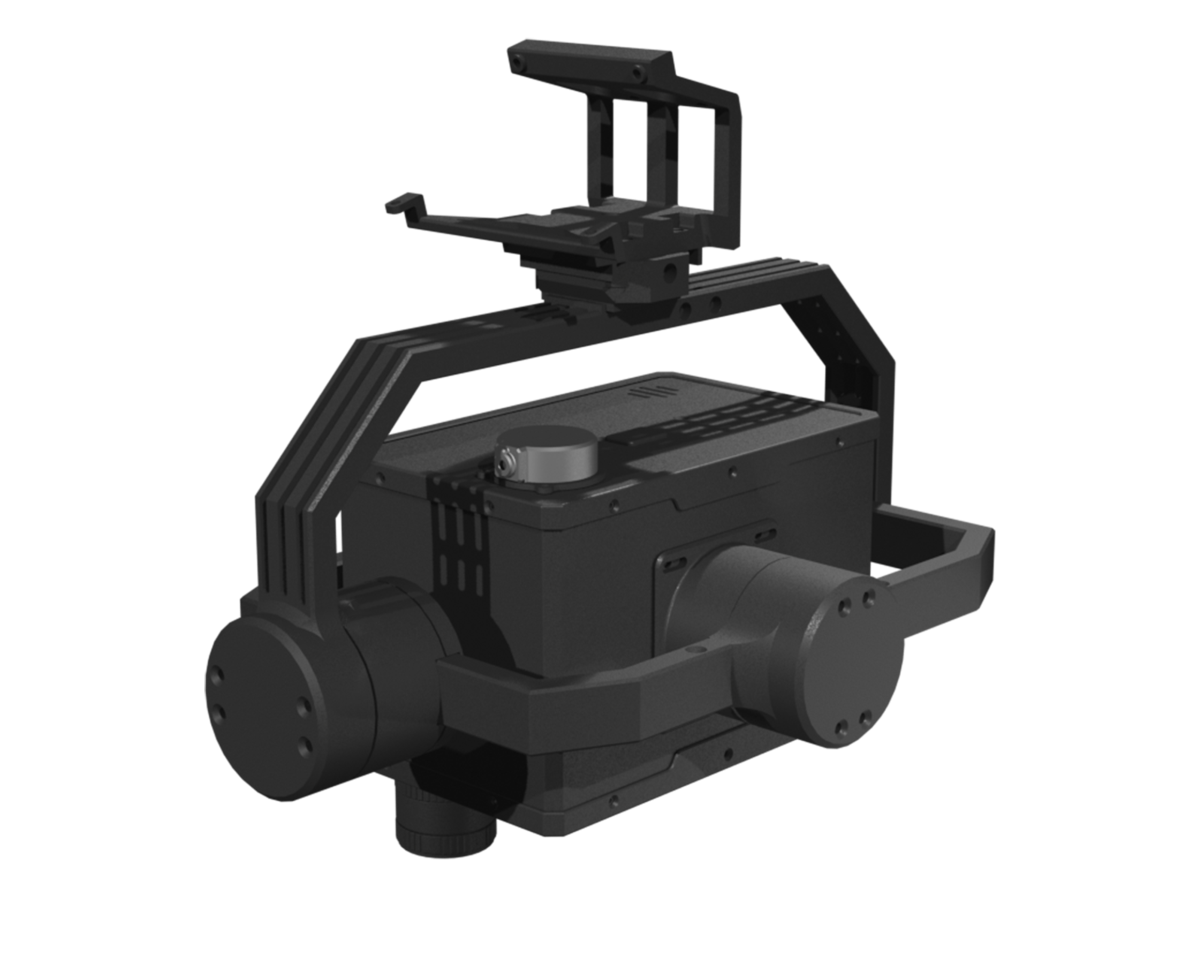

Self-stabilizing Gimbal

2-axis high-stability gimbal

POS system

GPS positioning accuracy

250px

Acquisition control system

Aerial control and acquisition system

CPU: I7, Memory: 16GB, Hard Drive: 1TB

Remote intelligent control

Drone remote controller intelligent control

Real-time monitoring

Real-time display of spectral and image data

Others

Operating current

Peak current: 3A

Input voltage

17V

Weight

≤2.7kg（main unit, lens, and gimbal included）

Operating temperature

0-40℃，20% ~ 80%RH(non-condensing)
