Product

Product Introduction Application field Features Specifications

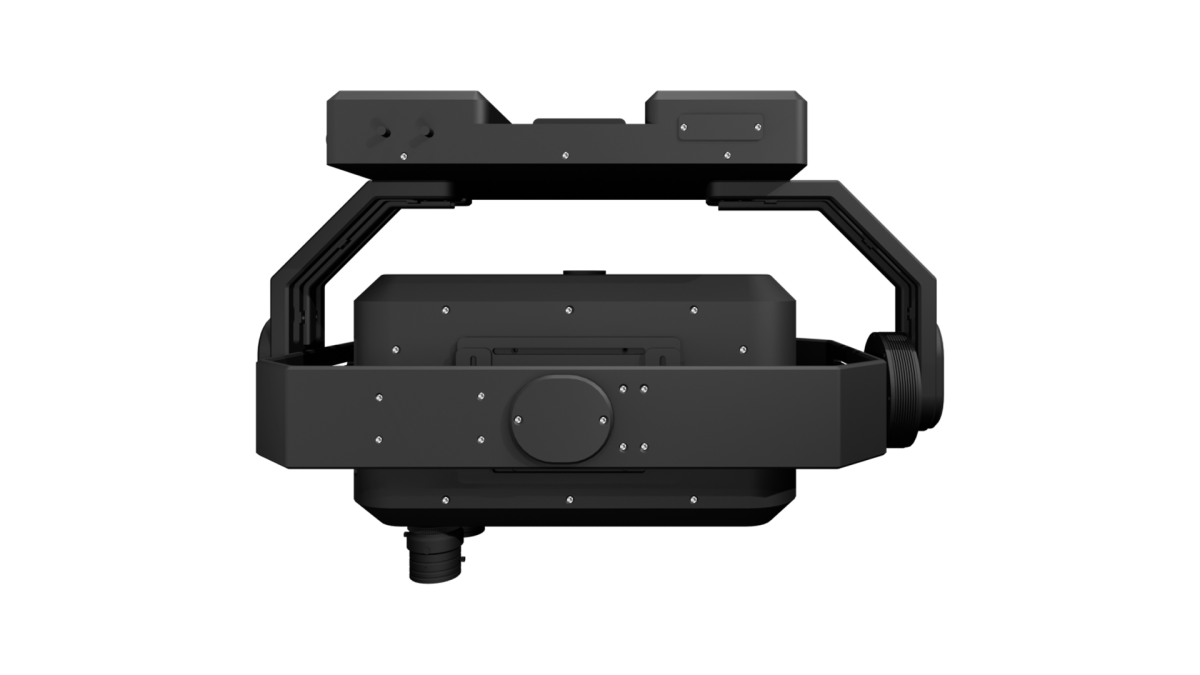

HY-9070-U 400–2500nm UAV-borne Hyperspectral Payload

The UAV-borne hyperspectral payload with a full spectral range of 400-2500nm adopts cutting-edge hyperspectral imaging technology. It fully explores and utilizes the unique spectral information inherent in different substances, and combines with a high-definition camera to capture high-definition images. This enables comprehensive detection of qualitative, quantitative, temporal, and positional information of substances. As a comprehensive remote sensing device integrating "spectral and spatial information", it can be widely applied in scenarios such as water environment monitoring, smart agriculture, mineral resource survey, target recognition, and anti-camouflage, meeting the diverse needs of various industries.

Application Fields

Water environment monitoring

Smart agriculture

Mineral resource survey

Target recognition

Anti-camouflage

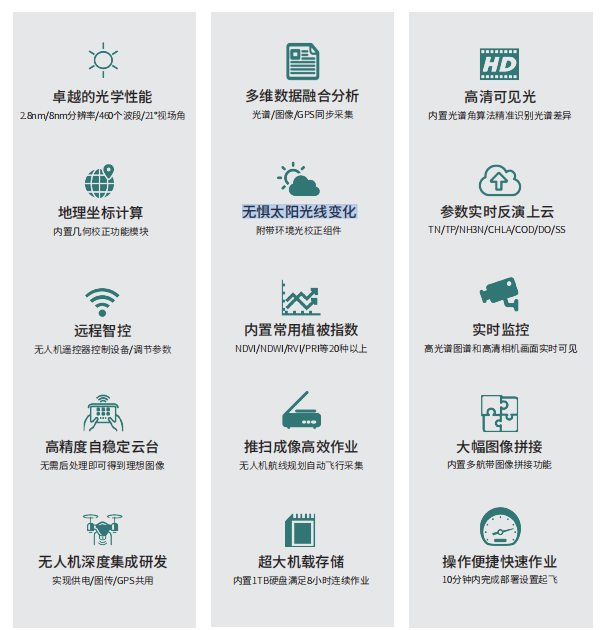

Functional Features

Specifications

TECHNICAL SPECIFICATIONS	HY-9070-U
		VNIR	SWIR
	Spectral Dispersion Method	Transmission Grating Spectroscopy	Transmission Grating Spectroscopy
	Spectral range	400-1000nm	1000-2500nm
	Combined Spectral Range	400-2500nm
	Spectral Bands	300	≥250
	Combined Spectral Bands	≥450
	Spectral resolution	≤ 2.8nm	≤ 10nm
	F-number	F/2.6	F/2.0
	Sensor	CMOS	HgCdTe(Stirling Cooled)
	Data interface	USB 3.0	GigE
	Sensor Optical Format	11.3mm x 7.1mm	9.6mm x 7.68mm
	Pixelsize	5.86 µm x 5.86 µm	15µm x15 µm
	Bit depth	12bits	14bits
	Effective slit length	11.3mm	9.6mm
	Slit width	25μm	25μm
	Recommended binning	1x1	1x1
	Spacial Pixel	1920	640
	Combined Spacial Pixel	640
	Field of View (FOV)	21°@f=25mm	21°@f=25mm
	Combined FOV	21°@f=25mm
	Instantaneous Field of View (IFOV）	1mrad@f=25mm	1mrad@f=25mm
	Combined IFOV	1mrad@f=25mm
	Frame rate（Max Frame）	128fps	100fps
	Power supply	12V DC ，4.3W	24V DC ，30W
	Operating temperature	0-40°C
	Storage temperature	0-50°C
