HX-10C Industrial VNIR(400-1000nm) Hyperspectral Camera
The HX-10C industrial-grade hyperspectral camera is developed based on the prism-grating dispersion spectroscopic hyperspectral imaging technology independently researched and developed by HHIT. It possesses prominent advantages including high spectral resolution, high efficiency, excellent consistency, and user-friendliness. In industrial applications, where equipment is required to exhibit high-speed, robust, and stable performance, the HX-10C stands out with its high frame rate and large field of view, which can fully meet the higher efficiency demands of industrial users. Its exceptional cost-effectiveness enables customers to achieve a more efficient return on investment. Furthermore, the HX-10C hyperspectral camera is equipped with flexible pixel binning and band selection functions, which significantly reduce the difficulty of on-line data transmission and processing for users. It finds wide application in fields such as industrial sorting, precision agriculture, food inspection, pharmaceutical manufacturing, and environmental monitoring.

Application Fields

Industrial sorting

Precision agriculture

Food inspection

Pharmaceutical manufacturing

Environmental monitoring

Application Cases

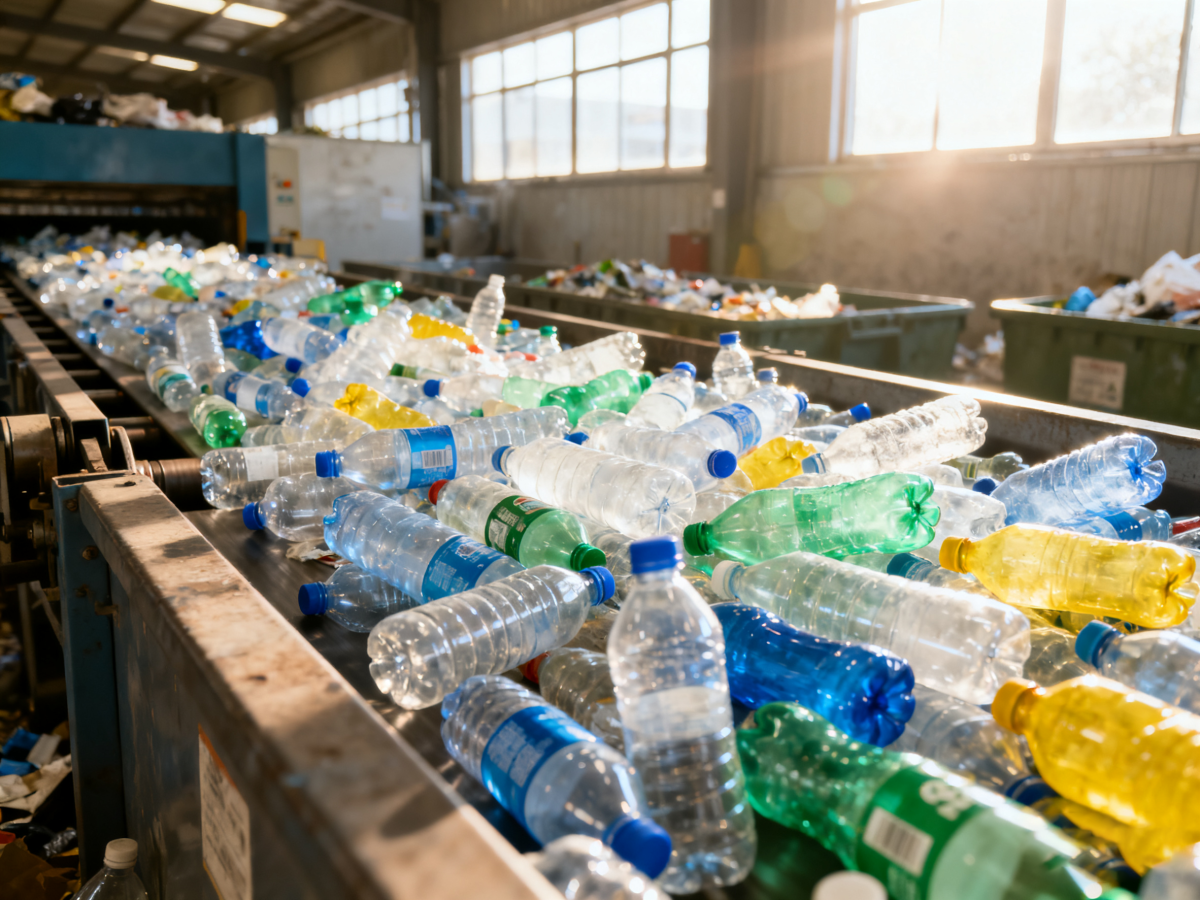

On-line Classification and Recycling of Plastic Waste
When the HX-10C visible-near infrared hyperspectral camera is used in conjunction with the automatic sorting software and deep learning algorithms developed by HHIT, it can accurately and rapidly classify plastic waste with different colors. The maximum sorting speed can reach over 5 m/s, thereby realizing fast, precise, and automated sorting and recycling of plastics. This not only helps customers create greater economic value but also contributes to the development of the circular economy.

Functional Features

More authentic and accurate spectral data

Higher speed and greater flexibility

Larger field of view range

Higher cost-effectiveness

Specifications



TECHNICAL SPECIFICATIONS

HX-10C

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

400-780nm

Spectral resolution

≤ 2.5nm

F-number

F/2.6

Sensor

CMOS

Data interface

CameraLink

Power supply

12V DC ,<10 W

Pixelsize

9µm x9 µm

Bit depth

12bit

Spatial pixels

1200

Spectral bands

360(2x)

Field of View (FOV)

≥65°@f=8mm

Instantaneous Field of View (IFOV)

3.125mrad@f=8mm

Frame rate(at full bands)

≥750fps(4x)

Lens mount

C-Mount

Dimensions

220*80*80mm (excluding lens)

Weight

2.5kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃

Software

Data Acquisition Software + SDK
