HX-10S Industrial VNIR(400-1000nm) Hyperspectral Camera
The HX-10S industrial-grade hyperspectral camera is built on the prism-grating dispersion spectroscopic hyperspectral imaging technology independently developed by HHIT. It demonstrates excellent performance with advantages such as high spectral resolution, high efficiency, strong consistency, and ease of operation. In industrial scenarios, equipment performance requirements of high speed, robustness, and stability are essential. The HX-10S, featuring a high frame rate and a large field of view, can effectively meet the higher efficiency needs of industrial users. Its superior cost-effectiveness allows customers to obtain a more efficient return on investment. In addition, the HX-10S hyperspectral camera offers flexible pixel binning and band selection capabilities, which greatly alleviate the challenges of on-line data transmission and processing for users. It is extensively applicable in industrial sorting, precision agriculture, food inspection, pharmaceutical manufacturing, environmental monitoring, and other related fields.

Application Fields

Industrial sorting

Precision agriculture

Food inspection

Pharmaceutical manufacturing

Environmental monitoring

Application Cases

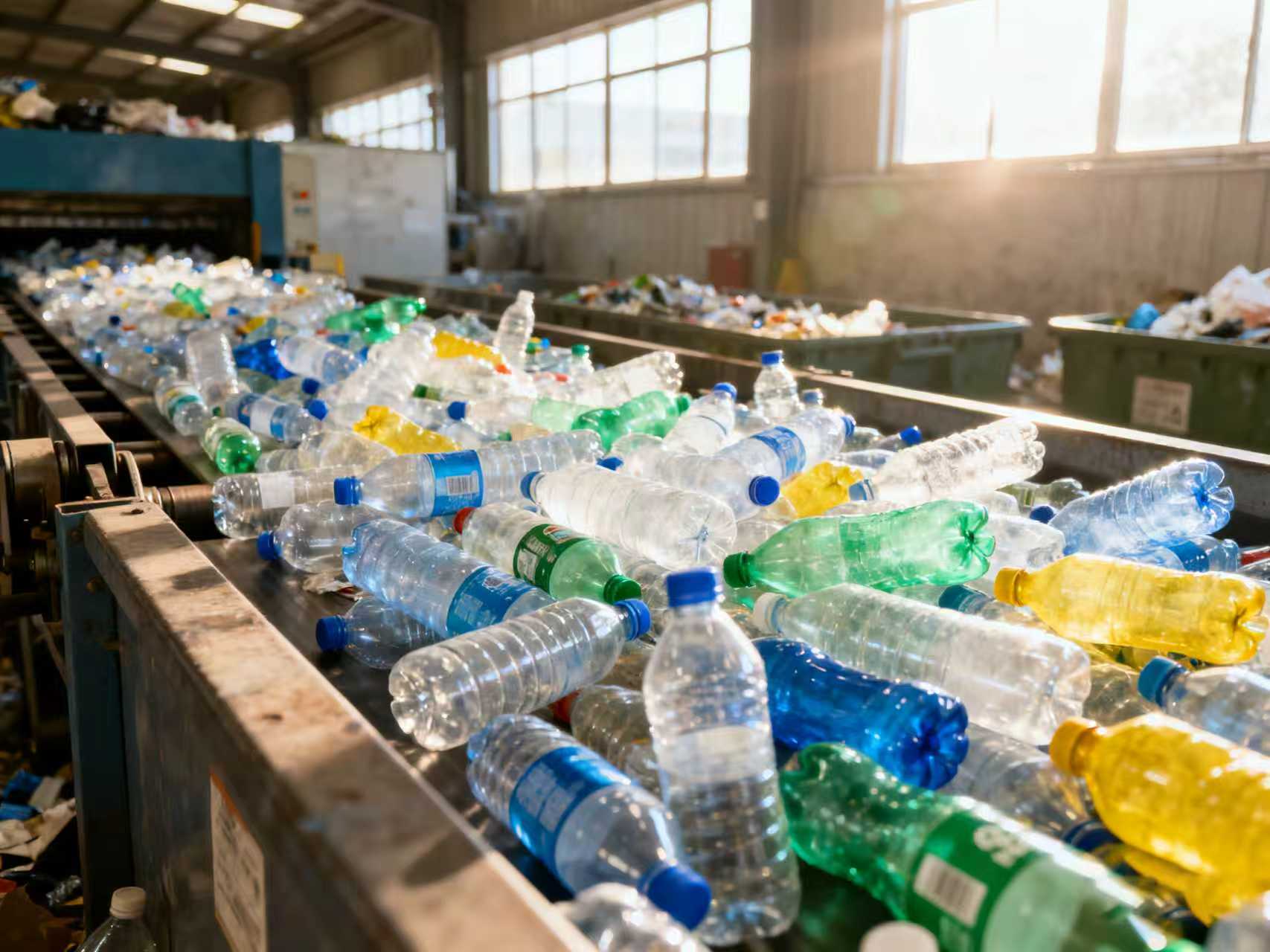

On-line Classification and Recycling of Plastic Waste
By combining the HX-10S visible-near infrared hyperspectral camera with the automatic sorting software and deep learning algorithms developed by HHIT, plastic waste of different colors can be accurately and quickly classified. The maximum sorting speed can exceed 5 m/s, thus achieving rapid, precise, and automated sorting and recycling of plastics. This not only helps customers generate greater economic value but also provides strong support for the development of the circular economy.

Functional Features

More authentic and accurate spectral data

Higher speed and greater flexibility

Larger field of view range

Higher cost-effectiveness

Specifications

TECHNICAL SPECIFICATIONS

HX-10S

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

400-1000nm

Spectral resolution

≤ 5nm

F-number

F/1.7

Sensor

CMOS

Data interface

CameraLink

Power supply

12V DC ,<10 W

Pixelsize

9µm x9 µm

Bit depth

12bit

Spatial pixels

≥1150

Spectral bands

224(2x)

Field of View (FOV)

≥80°@f=8mm

Instantaneous Field of View (IFOV)

3.91mrad@f=8mm

Frame rate(at full bands)

≥1000fps(4x)

Lens mount

C-Mount

Dimensions

200*160*80mm (excluding lens)

Weight

3kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃

Software

Data Acquisition Software + SDK
