HX-10U Industrial VNIR(400-1000nm) Hyperspectral Camera
The HX-10U industrial-grade hyperspectral camera is based on the prism-grating dispersion spectroscopic hyperspectral imaging technology independently researched and developed by HHIT. It exhibits numerous outstanding advantages, including high spectral resolution, high efficiency, good consistency, and simplicity in use. In industrial applications, where high-speed, robust, and stable equipment performance is a prerequisite, the HX-10U excels with its high frame rate and large field of view, capable of meeting the higher efficiency requirements of industrial users. Its remarkable cost-effectiveness enables customers to gain a more efficient return on investment. Moreover, the HX-10U hyperspectral camera is endowed with flexible pixel binning and band selection functions, which significantly reduce the difficulty of on-line data transmission and processing for users. It is widely used in industrial sorting, precision agriculture, food inspection, pharmaceutical manufacturing, environmental monitoring, and other fields.

Application Fields

Industrial sorting

Precision agriculture

Food inspection

Pharmaceutical manufacturing

Environmental monitoring

Application Cases

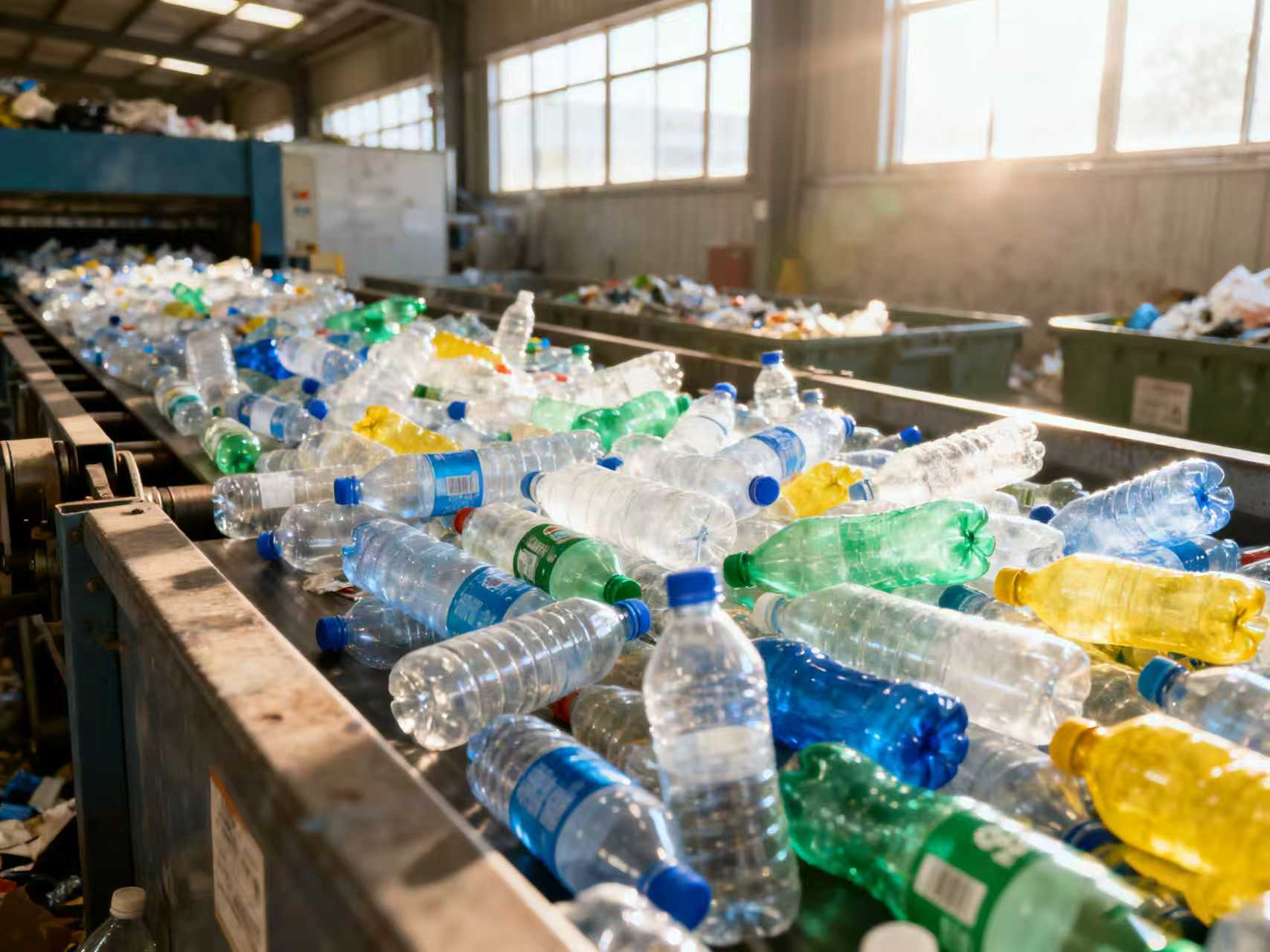

On-line Classification and Recycling of Plastic Waste
The HX-10U visible-near infrared hyperspectral camera, when used together with the automatic sorting software and deep learning algorithms developed by HHIT, can accurately and rapidly classify plastic waste with different colors. The maximum sorting speed can reach over 5 m/s, realizing the fast, precise, and automated sorting and recycling of plastics. This not only helps customers create higher economic value but also promotes the development of the circular economy.

Functional Features

More authentic and accurate spectral data

Higher speed and greater flexibility

Larger field of view range

Higher cost-effectiveness

Specifications


TECHNICAL SPECIFICATIONS

HX-10U

Spectral Dispersion Method

Transmission Grating Spectroscopy

Spectral range

400-780nm

Spectral resolution

≤ 2.5nm

F-number

F/2.6

Sensor

CMOS

Data interface

CameraLink

Power supply

12V DC ,<10 W

Pixelsize

9µm x9 µm

Bit depth

12bit

Spatial pixels

≥1500

Spectral bands

360(2x)

Field of View (FOV)

≥65°@f=8mm

Instantaneous Field of View (IFOV)

3.125mrad@f=8mm

Frame rate(at full bands)

≥750fps(4x)

Lens mount

C-Mount

Dimensions

220*80*80mm (excluding lens)

Weight

<2.5kg

Operating temperature

‘0-40℃

Storage temperature

‘0-50℃

Software

Data Acquisition Software + SDK
